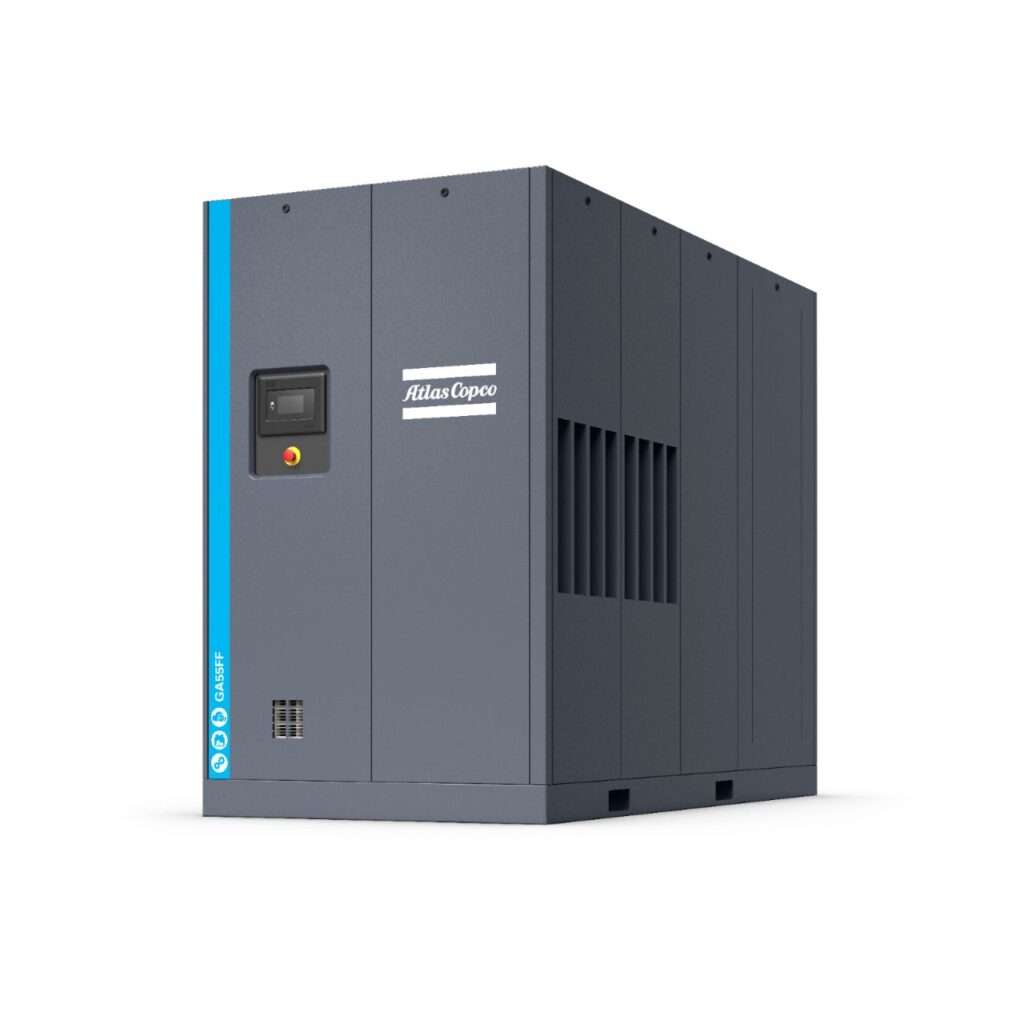

Oil-injected screw compressor GA series – Shanghai TS Energy Equipment Co. Ltd

Capacity FAD:

318 m³/h – 1,051.99 m³/h

Installed motor power

37 kW – 89.99 kW

Capacity FAD l/s

88 l/s – 292 l/s

Technical benefits

Lower your energy use

The GA series comes with a new screw element and a high-efficiency motor, delivering more air while using less energy.

Always reliable

Oil-cooled motor drive side bearings optimize drivetrain performance and oversized coolers ensure reliable performance in demanding conditions.

Low maintenance

The GA is decidedly low-maintenance with long service intervals of 4,000 hours. Thanks to the completely maintenance-free drivetrain, it can be serviced much faster.

Quality air

The GA comes in a Full Feature version with an integrated refrigerant dryer to give you the dry, quality air your production requires.

Technical Parameters

Compressor type	Pressure variant	Max. working pressure WorkPlace		Capacity FAD			Installed motor power		Noise level
		bar(e)	psig	l/s	m³/h	cfm	kW	hp	dB(A)
GA 37	7.5	7.5	109	116	416	245	37	50	67
	8.5	8.5	123	108	388	228	37	50	67
	10	10	145	100	361	212	37	50	67
	13	13	189	88	318	187	37	50	67
GA 45	7.5	7.5	109	138	497	293	45	60	68
	8.5	8.5	123	128	459	270	45	60	68
	10	10	145	119	430	253	45	60	68
	13	13	189	105	379	223	45	60	68
GA 55	7.5	7.5	109	179	643	378	55	75	71
	8.5	8.5	123	171	614	362	55	75	71
	10	10	145	152	546	321	55	75	71
	13	13	189	136	488	287	55	75	71
GA 75	7.5	7.5	109	229	825	486	75	100	73
	8.5	8.5	123	220	792	466	75	100	73
	10	10	145	203	730	430	75	100	73
	13	13	189	176	633	372	75	100	73
GA 90	7.5	7.5	109	292	1052	619	90	125	72
	8.5	8.5	123	277	998	588	90	125	72
	10	10	145	256	923	543	90	125	72
	13	13	189	216	779	458	90	125	72
