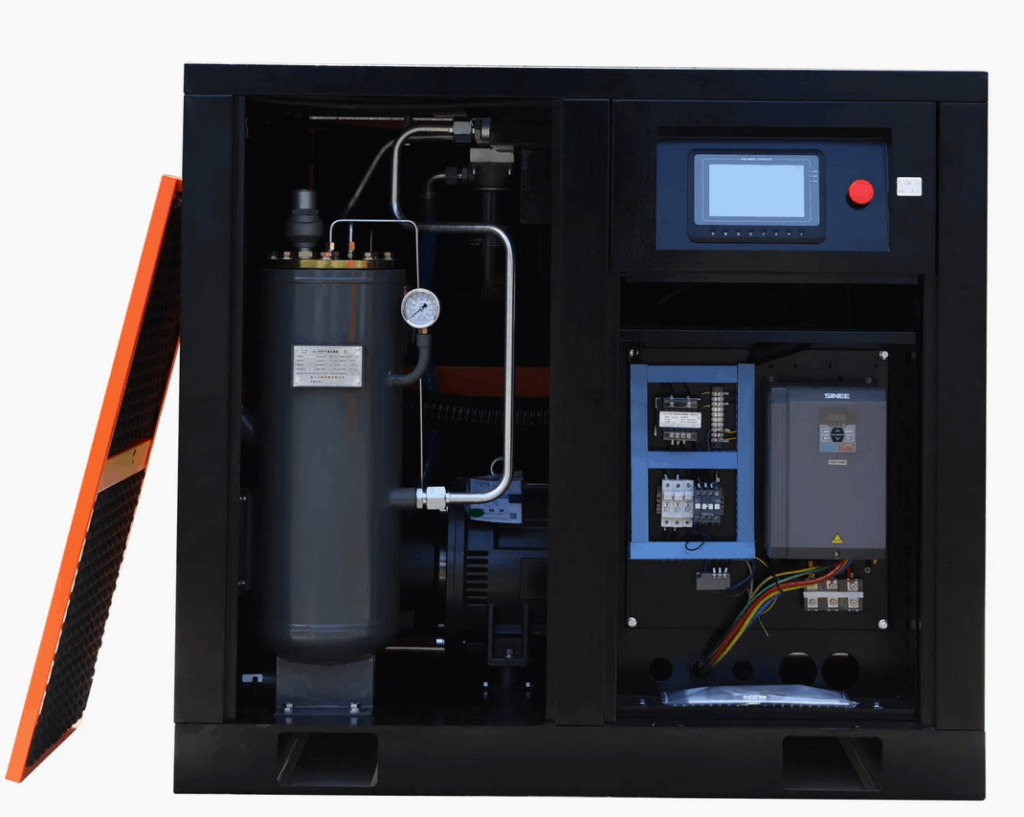

Oil filled rotary screw compressors

Technical Parameters

Model	Power	Maximum work Pressure (bar)	Air delivery (m3/min)	Outlet diameter (inch)	Diemension L*W*H (mm)	Weight (Kg)
BS10	7.5KW 10HP	7	1.20	G3/4	780*600*1020	215
		8	1.10
		10	0.90
BS15	11KW 15HP	7	171	G1	1050*700*1100	310
		8	1.65
		10	1.32
BS20	15KW 20HP	7	2.30	G1	1050*700*1100	335
		8	2.25
		10	1.80
BS30	22KW 30HP	7	3.80	G1	1300*850*1100	465
		8	3.60
		10	3.00
BS40	30KW 40HP	7	5.20	G1.5	1460*1000*1380	545
		8	5.00
		10	4.50
BS50	37KW 50HP	7	6.40	G1.5	1460*1000*1380	630
		8	6.20
		10	5.60
BS60	45KW 60HP	7	7.70	G1.5	1460*1000*1380	825
		8	7.50
		10	7.00
BS75	55KW 75HP	7	10.50	G2	1900*1250*1605	1130
		8	10.00
		10	8.50
BS100	75KW 100HP	7	13.20	G2	1900*1250*1605	1230
		8	12.60
		10	10.90
BS120	90KW 120HP	7	16.20	G2	1900*1250*1605	1600
		8	15.00
		10	1400
BS150	110KW 150HP	7	21.00	DN65	2300*1470*1840	2000
		8	20.00
		10	17.40
BS175	132KW 175HP	7	24.60	DN65	2300*1470*1840	2100
		8	23.00
		10	21.00
BS220	160KW 220HP	7	28.00	DN80	2500*1470*1840	2800
		8	27.00
		10	23.10
BS250	185KW 250HP	7	3200	DN80	2500*1470*1840	2900
		8	31.00
		10	27.2
