- Ambient temperature: -140 ℉ – 122 ℉ (-60 °C – +50 °C)
- Pressure range: 0 – 8990 psi (0 – 61.98 MPa)
- Power range: 10 HP – 10000 hp (7.46 – 7457 kW)
- Process gas: natural gas, air, hydrogen, ethane, nitrogen, propane, CO2, BOG, etc.
- Mounting types: automotive, stationary, mobile and pile mounting
- Application: injection, collection, utilization of associated gas, injection of fuel gas, CNG, etc.
Features and Advantages:
Reciprocating Gas Compressor are widely used in many industries related to the compression and supply of gas to consumers. Like oil and chemical industry, oil refineries and more. Various technological processes can include corrosive, inert, poisonous and explosive gases, which must be treated to a clean gas without impurities of oil.
Depending on the type of equipment, work with different gases, such as:
- Natural gas,
- Nitrogen,
- Hydrogen,
- Associated petroleum gas (APG),
- Helium,
- Methane,
- Ethane,
- Propane,
- Chlorine,
- Propylene,
- Argon,
- Various types of butane,
- Carbon dioxide, etc.

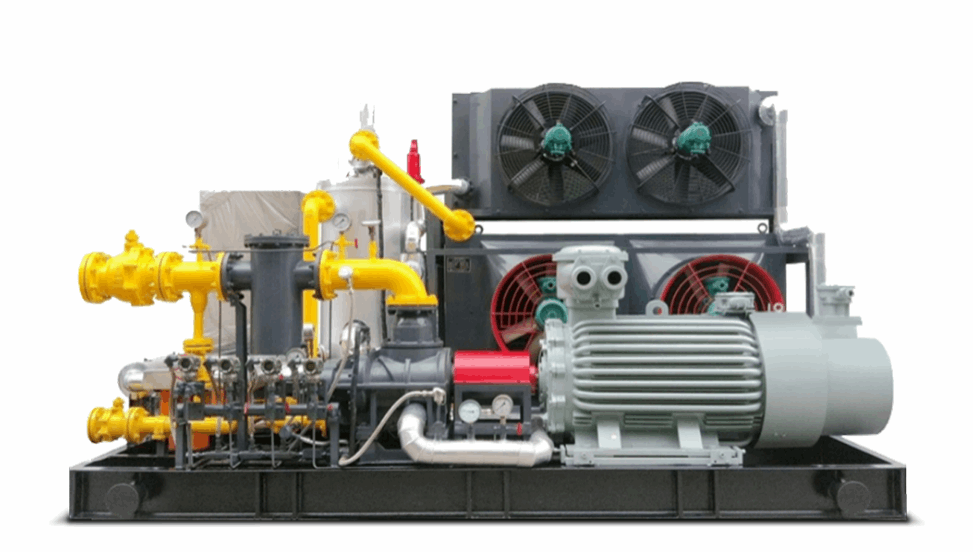

Compressor units can be made on single frame design. With interstage devices and all necessary piping, placed on a single platform with a compressor.
Compressor units can be manufactured in the version “without lubrication of cylinders and oil seals”
The modern automation system of the compressor units guarantees the safety and easy use of the equipment.
Reducing the time of commissioning.
Application Field
- CNG Filling Station
- Compressor Units for Marine Applications
- Process compressors
- Gas booster compressor stations
- Gas storage compressor units
- Compressor Gas Collection Units
- Compressor Units for Gas Transportation
- Gas Recovery Compressor Units
- Gas Compression and Injection Unit
- Gas Lift Compressor Unit
Product Characteristics:
Compressor frames are designed for long service life and ease of maintenance. Our antiques have a base made of ductile iron with massive stiffeners and a lightweight removable aluminum top cover.
Durable crossheads
One-piece durable crossheads with ground hardened steel pins, pressure lubricated top and bottom sliding surfaces for maximum wear.
High strength connecting rods
The compressors are characterized by the use of durable ductile iron connecting rods with a four-bolt cover attached to the high-strength I-beam body.
Innovative cylinders
Proven cylinder design eliminates the cost of a cylinder cooling system, eliminates complexities and eliminates the potential for maintenance problems. Associated with water cooling such as scale and corrosion.
- Horizontal, ion-nitrided compressor cylinders, single or double acting, no water cooling
- Gauge connection points on the cylinder cover side and the crankshaft side
- Ion nitrided SAE 4100 series piston rods with rolled threads
- Pistons made of wear resistant gray or ductile iron
- Non-metallic piston and backup rings
- Floating, vented stem seals and valve stem seals
- Non-metallic plates in suction and discharge valves
Gas Compression Products
We are committed to providing integrated compression solutions tailored to our clients’ specific requirements. We offer all series of compressors with electric motors or gas engines to ensure safe and reliable operation. Our complete units can be used both on land and at sea, with power ranging from 85 to 10,000 HP. Extensive application experience from oil and gas fields to chemical plants gives us a deep understanding of customer needs as well as industry standards in different countries and regions. In addition, we can also provide engineering services for gas gathering stations, gas supply and underground gas storage facilities, etc.
